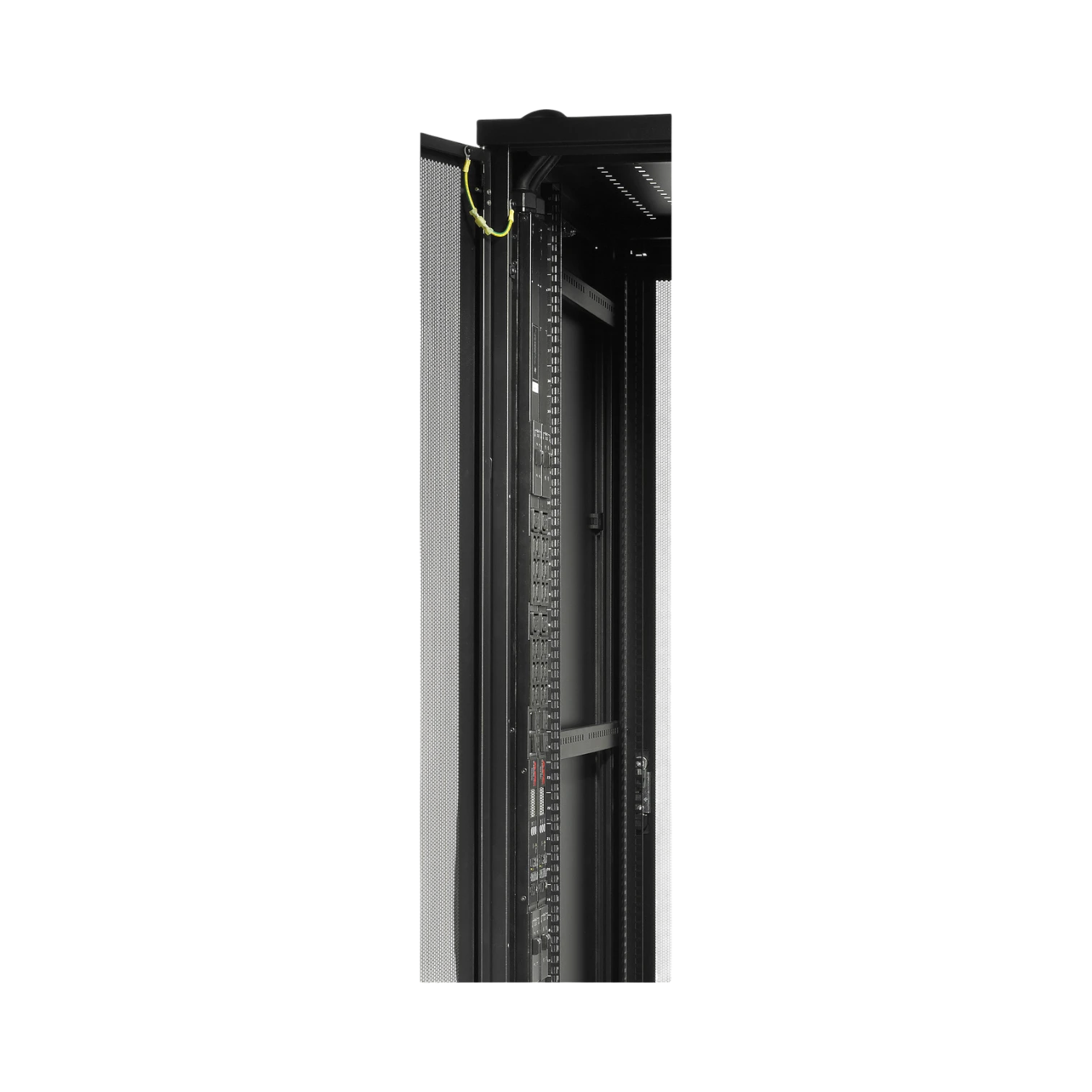

APC NetShelter SV 42U 600mm Wide x 1060mm Deep Enclosure with Sides, Black, Single Rack Unassembled

The APC AR2400FP1 is a 42U NetShelter SV rack enclosure that arrives unassembled, making it easier to move through tight hallways, elevators, or doorways before final installation. It is aimed at low to medium density IT deployments where reliable mounting, security, and airflow management matter just as much as floor space.

Once assembled, the enclosure stands 81 inches high, spans 600 mm in width (about 23.6 inches), and reaches 1060 mm in depth (approximately 41.7 inches). A static load rating of 2205 lb lets you populate the cabinet fully while it sits in place, and a dynamic rating of 1014 lb means you can roll a loaded rack across the floor without removing equipment.

The frame is built from 14 to 19 gauge steel that resists flexing under heavy gear. Front and rear doors, along with the side panels, share the same key for simpler access control, so one key opens every lock on the rack. Adjustable vertical mounting rails slide forward or back to line up with server or networking gear, while baying hardware allows you to bolt multiple cabinets together into a tidy row.

Casters arrive already attached and work with integrated leveling feet, giving you the option to roll the rack into position and then stabilize it. Modular roof and side panels lighten lifting during assembly and help route cables cleanly once the rack is complete. Compatibility with standard EIA 19-inch equipment ensures servers, switches, UPS systems, and cable managers fit without modification.

This enclosure suits branch offices, network closets, edge computing sites, and data centers that need a dependable cabinet but do not want the shipping constraints of a fully assembled rack. A five-year repair or replacement warranty from APC reinforces long-term confidence.

• 42U rack enclosure ships unassembled for easier transport through narrow spaces
• 600 mm wide and 1060 mm deep footprint; 81 in height
• Static load capacity up to 2205 lb; dynamic load up to 1014 lb
• Keyed alike front and rear doors plus side panels enhance security
• Vertical mounting rails adjust to match varying equipment depths
• Casters and leveling feet arrive preinstalled for quick positioning
• Frame uses 14 to 19 gauge steel for strength and stability
• Backed by a five-year repair or replacement warranty from APC
